2006-1681/1000-414 | WAGO
2-wire fuse terminal, 1 pole, 0.5-10 mm², 500 V, 25 A, 2006-1681/1000-414
Unit Price (€ / pc.)
13.6969 € *
Available: 12 pcs.
Leadtime: 10 Weeks **
Total Price:
13.70 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6969 €
10 pcs.
12.6021 €
50 pcs.
11.5906 €
100 pcs.
10.5434 €
*incl. VAT plus shipping costs
**Subject to prior sale

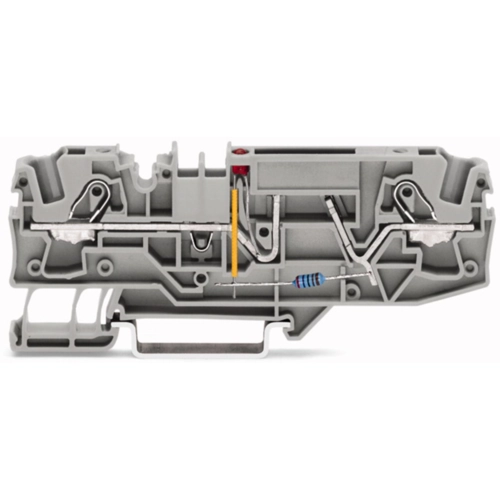

2-Conductor fuse terminal block, 2006-1681/1000-414, Wago
2-conductor fuse terminal block for automotive fuses with test option 48 V with defect indication by LED Current consumption LED: 4.8 mA gray
Technical specifications
| Anschluss | Zugfederanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Sicherungsklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 8000 V | |
| Breite | 7.5 mm | |
| Farbe | grau | |
| Höhe | 96.3 mm | |
| Länge | 32.9 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Nennstrom | 25 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369095 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
