2091-1302/200-000 | WAGO

Socket header, 2 pole, pitch 3.5 mm, straight, light gray, 2091-1302/200-000

Order No.: 44P7349
EAN: 4050821395935
MPN:
2091-1302/200-000
Series: 2091

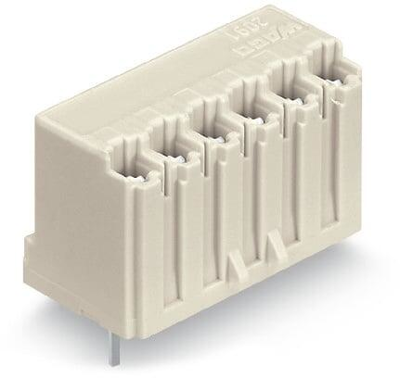

2091-1302/200-000 WAGO PCB Connection Systems Image 1

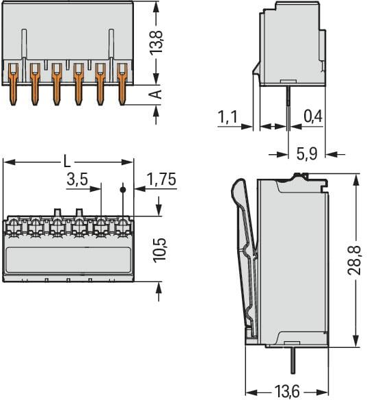

2091-1302/200-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
2.1896 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.1896 €

THR female header, 2091-1302/200-000, WAGO

THR female header, straight, Pin spacing 3.5 mm, 2-pole, 0.4 x 0.9 mm solder pin, light gray.

Features

  • Coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
  • The female connector is fully shrouded by the male header's housing, providing vibration resistance up to 20 g
Technical specifications
Anschluss Lötstift
Anzahl der Reihen 1
Ausführung Buchsenleiste
Farbe lichtgrau
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 160 V
Nennstrom 10 A
Orientierung gerade
Polzahl 2-polig
Rastermaß 3.5 mm
Verriegelung Nein
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
