2092-1112/002-1000 | WAGO
1-wire female connector, 12 pole, pitch 5 mm, straight, light gray, 2092-1112/002-1000
Unit Price (€ / pc.)
7.4613 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

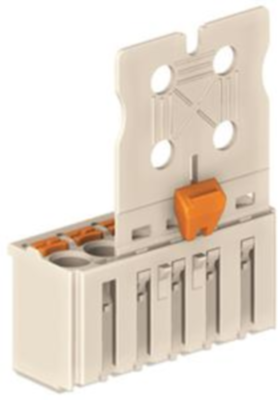

Female connector, 2092-1112/002-1000, WAGO
1-conductor female connector, push-button, Push-in CAGE CLAMP, 2.5 mm², pin spacing 5 mm, 12-pole, gripping plate sliding connector release, direct marking, 2,50 mm², light gray.
Features
- Universal connection for all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require special tools
- Ability to wire while mated or unmated
- Integrated locking latches prevent accidental disconnection
Technical specifications
| Connection | Push-in | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Breakable | No | |
| Colour | lichtgrau | |
| Contact type | Buchse | |
| Rated voltage | 320 V | |
| Rated current | 15 A | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
