2092-1424/200-000/997-406 | WAGO

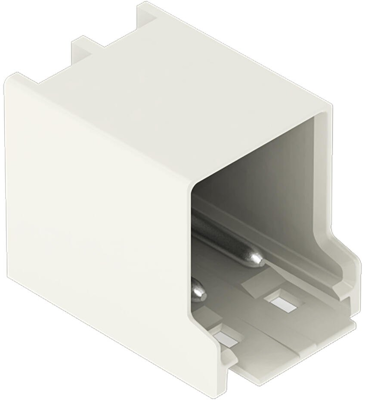

Pin header, 4 pole, pitch 5 mm, angled, light gray, 2092-1424/200-000/997-406
Unit Price (€ / pc.)
1.5827 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
THT male header, 2092-1424/200-000/997-406, WAGO
THR male header, 1.4 mm Ø solder pin, angled, in tape-and-reel packaging, Pin spacing 5 mm, 4-pole, light gray.
Features
- Assembly of female connectors without loss of poles, allowing different functions to be divided within one male header
- Coding pins inserted into the header interface prevent mismating, allowing subsequent coding in panel feedthrough applications
- The female connector is fully shrouded by the male header's housing, providing vibration resistance up to 20 g
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | lichtgrau | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 16 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 4-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
