2092-1723/200-000 | WAGO

Pin header, 3 pole, pitch 5 mm, angled, black, 2092-1723/200-000

Order No.: 44P8022
EAN: 4055143934596
MPN:
2092-1723/200-000
Series: 2092
WAGO
2092-1723/200-000 WAGO PCB Connection Systems Image 1
2092-1723/200-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.6783 €

THR male header, 2092-1723/200-000, WAGO

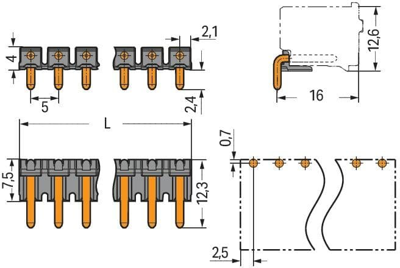

THR male header, 1.4 mm Ø solder pin, angled, Pin spacing 5 mm, 3-pole, black.

Features

  • Solder pin strips may be mounted horizontally or vertically via straight or angled solder pins
  • Assembly of female connectors without loss of poles, allowing different functions to be divided within one solder pin strip
Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 320 V
Rated current 16 A
Orientation angled
Pin number 3 pole
Grid 5 mm
Type of locking No
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
