2092-3375/200-000 | WAGO
Female connector, 5 pole, pitch 7.5 mm, angled, light gray, 2092-3375/200-000
Unit Price (€ / pc.)
4.1412 € *
Available: 0 pcs.
Leadtime: On Request **

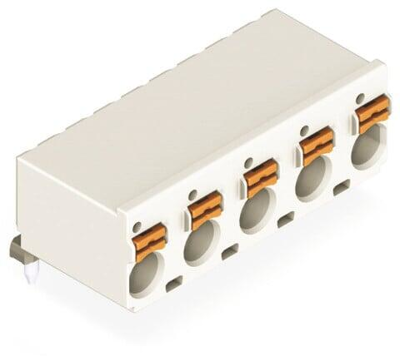

THR female connector, 2092-3375/200-000, WAGO
1-conductor THR female connector angled, push-button, Push-in CAGE CLAMP, 2.5 mm², Pin spacing 7.5 mm, 5-pole, 1.4 mm Ø solder pin, 2,50 mm², light gray.
Features
- Universal connection for all conductor types
- Simple, push-in termination of solid and ferruled conductors
- Easy-to-use design does not require specialty tools
- Ability to wire while mated or unmated
- Integrated test ports for testing parallel to conductor entry
Technical specifications
| Connection | push-in | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | light gray | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Grid | 7.5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
