2092-3705 | WAGO
Pin header, 5 pole, pitch 7.5 mm, straight, black, 2092-3705
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Leadtime: On Request **

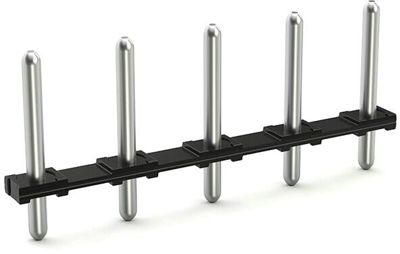

THT male header, 2092-3705, WAGO
THT male header, 1.4 mm Ø solder pin, straight, Pin spacing 7.5 mm, 5-pole, black.
Features
- Solder pin strips may be mounted horizontally or vertically via straight or angled solder pins
- Assembly of female connectors without loss of poles, allowing different functions to be divided within one solder pin strip
Technical specifications
| Anschluss | Lötstift | |
| Anschlussoberfläche | verzinnt | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 630 V | |
| Nennstrom | 16 A | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Rastermaß | 7.5 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366930 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
