2092-3725 | WAGO
Pin header, 5 pole, pitch 7.5 mm, angled, black, 2092-3725
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Available in 5 Days: 6,720 pcs.
Leadtime: 1 Week **

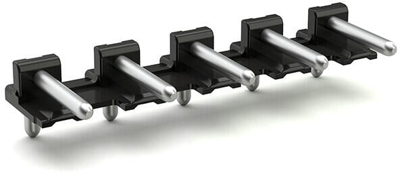

THT male header, 2092-3725, WAGO
THT male header, solder pin Ø 1.4 mm, angled, pitch 7, 5 mm, 5-pin, black.
Features
- Solder pin strips may be mounted horizontally or vertically via straight or angled solder pins
- Assembly of female connectors without loss of poles, allowing different functions to be divided within one solder pin strip
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 16 A | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Grid | 7.5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
