2231-114/031-000 | WAGO

1-wire female connector, 14 pole, pitch 5 mm, gray, 2231-114/031-000

Order No.: 44P7413
EAN: 4045454877149
MPN:
2231-114/031-000

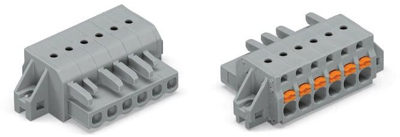

2231-114/031-000 WAGO PCB Connection Systems Image 1
2231-114/031-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
11.7096 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
11.71 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
11.7096 €

1-conductor female connector, 2231-114/031-000, WAGO

1-conductor female connector, push-button, Push-in cage clamp, 2.5 mm², Pin spacing 5 mm, 14-pole, clamping collar, 2.50 mm², gray.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Integrated test ports for testing parallel to the conductor entry
Technical specifications
Anschluss Push-in
Anzahl der Reihen 1
Ausführung Buchsenleiste
Farbe grau
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 320 V
Nennstrom 16 A
Polzahl 14-polig
Rastermaß 5 mm
Verriegelung Nein
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
