2231-212/037-000 | WAGO

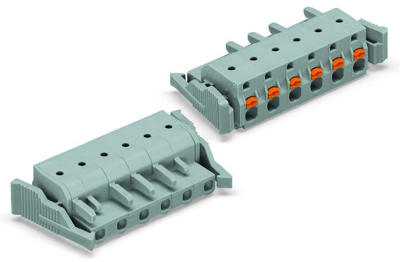

1-wire female connector, 12 pole, pitch 7.5 mm, gray, 2231-212/037-000

Order No.: 44P7598
EAN: 4045454810689
MPN:
2231-212/037-000
Series: 2231
WAGO
2231-212/037-000 WAGO PCB Connection Systems Image 1
2231-212/037-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
10.6029 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
10.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
10.6029 €

1-conductor female connector, 2231-212/037-000, WAGO

1-conductor female connector, push-button, Push-in cage clamp, 2.5 mm², Pin spacing 7.5 mm, 12-pole, Lateral locking levers, 2.50 mm², gray.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Integrated test ports for testing parallel to the conductor entry
Technical specifications
Connection push-in
Number of rows 1
Version socket header
Colour gray
Contact type socket
contact surface tin-plated
Rated voltage 630 V
Rated current 16 A
Pin number 12 pole
Grid 7.5 mm
Type of locking Yes
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
