2231-304/026-000 | WAGO
Socket header, 4 pole, pitch 5.08 mm, angled, orange, 2231-304/026-000
Unit Price (€ / pc.)
3.9270 € *
Available: 50 pcs.
Leadtime: 4 Weeks **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9270 €
10 pcs.
3.6176 €
50 pcs.
3.2844 €
100 pcs.
2.9631 €
*incl. VAT plus shipping costs
**Subject to prior sale
Sub-D cable connectors with CAGE CLAMP S terminals, type Wago 2231.

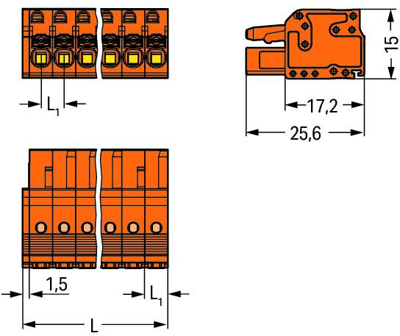

Codable, with integrated actuators and 2 latches, conductor cross-sections from 0.2 to 2.5 mm (AWG 24 to AWG 12); Rated voltage: 250 V. Rated surge voltage: 4.0 kV. Rated current: 16 A. Stripping length: 10 to 11 mm. Dimensions: length = (number of poles x grid) + 1.5 mm.
5.08 mm grid.
Color: orange
Type: 2231-304/026-000, 4-pole
Technical specifications
| Anschluss | Federzuganschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | orange | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 16 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 4-polig | |
| Rastermaß | 5.08 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
