2231-308/026-000 | WAGO

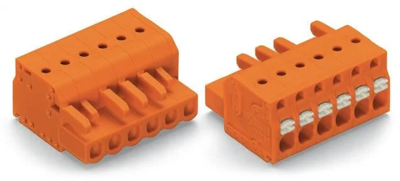

Socket header, 8 pole, pitch 5.08 mm, angled, orange, 2231-308/026-000
Unit Price (€ / pc.)
5.4264 € *
Available: 0 pcs.
Leadtime: On Request **
Sub-D cable connectors with CAGE CLAMP S terminals, type Wago 2231.

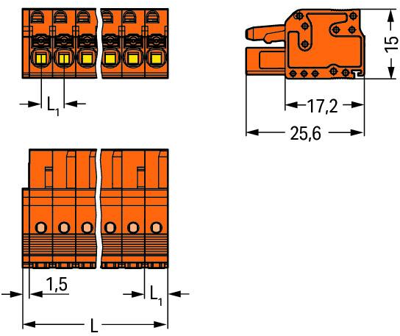

Codable, with integrated actuators and 2 latches, conductor cross-sections from 0.2 to 2.5 mm (AWG 24 to AWG 12); Rated voltage: 250 V. Rated surge voltage: 4.0 kV. Rated current: 16 A. Stripping length: 10 to 11 mm. Dimensions: length = (number of poles x grid) + 1.5 mm.
5.08 mm grid.
Color: orange
Type: 2231-308/026-000, 8-pole
Technical specifications
| Connection | spring balancer connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Orientation | angled | |
| Pin number | 8 pole | |
| Grid | 5.08 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
