2231-320/102-000 | WAGO

1-wire female connector, 20 pole, pitch 5.08 mm, orange, 2231-320/102-000

Order No.: 44P7534
EAN: 4045454908089
MPN:
2231-320/102-000
Series: 2231
WAGO

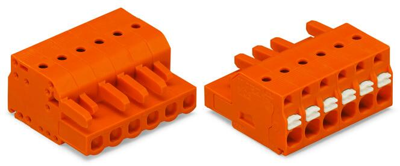

2231-320/102-000 WAGO PCB Connection Systems Image 1

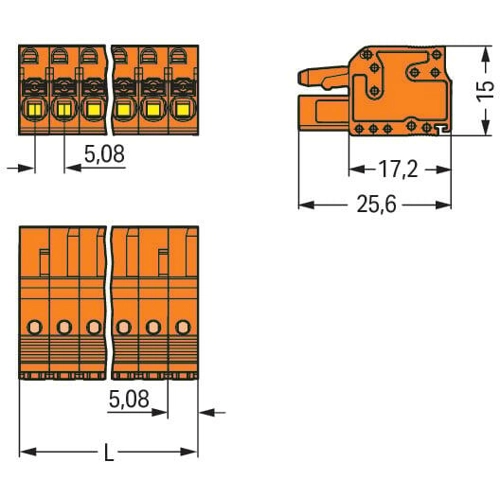

2231-320/102-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
16.3149 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.31 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
16.3149 €

1-conductor female connector, 2231-320/102-000, WAGO

1-conductor female connector, push-button, Push-in cage clamp, 2.5 mm², Pin spacing 5.08 mm, 20-pole, with integrated end plate, 2.50 mm², orange.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Integrated test ports for testing parallel to the conductor entry
Technical specifications
Connection push-in
Number of rows 1
Version socket header
Colour orange
Contact type socket
contact surface tin-plated
Rated voltage 320 V
Rated current 16 A
Pin number 20 pole
Grid 5.08 mm
Type of locking No
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
