2231-706/037-000 | WAGO

1-wire female connector, 6 pole, pitch 7.62 mm, orange, 2231-706/037-000

Order No.: 44P7658
EAN: 4045454812478
MPN:
2231-706/037-000

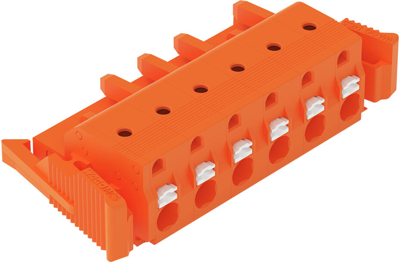

2231-706/037-000 WAGO PCB Connection Systems Image 1

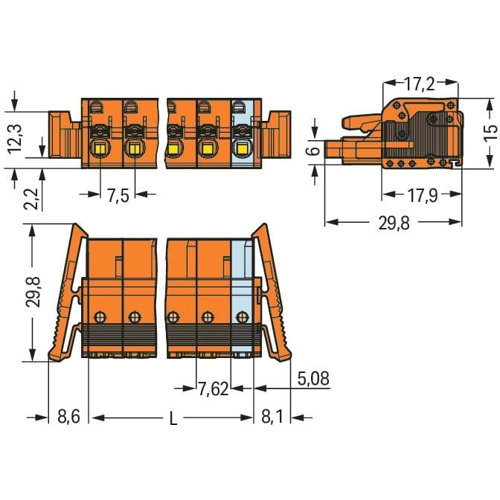

2231-706/037-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
5.5097 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
5.51 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.5097 €

1-conductor female connector, 2231-706/037-000, WAGO

1-conductor female connector, push-button, Push-in cage clamp, 2.5 mm², Pin spacing 7.62 mm, 6-pole, Lateral locking levers, 2.50 mm², orange.

Features

  • Universal connection for all conductor types
  • Easy-to-use design does not require specialty tools
  • Ability to wire while mated
  • Integrated test ports for testing parallel to the conductor entry
Technical specifications
Anschluss Push-in
Anzahl der Reihen 1
Ausführung Buchsenleiste
Farbe orange
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 630 V
Nennstrom 16 A
Polzahl 6-polig
Rastermaß 7.62 mm
Verriegelung Ja
Logistics
Ursprungsland PL
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
