2231-709/031-000 | WAGO
1-wire female connector, 9 pole, pitch 7.62 mm, orange, 2231-709/031-000
Unit Price (€ / pc.)
7.9135 € *
Available: 0 pcs.
Leadtime: On Request **

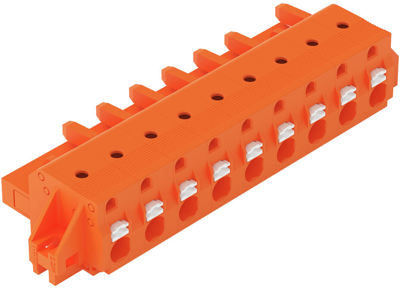

1-conductor female connector, 2231-709/031-000, WAGO
1-conductor female connector, push-button, Push-in cage clamp, 2.5 mm², Pin spacing 7.62 mm, 9-pole, clamping collar, 2.50 mm², orange.
Features
- Universal connection for all conductor types
- Easy-to-use design does not require specialty tools
- Ability to wire while mated
- Integrated test ports for testing parallel to the conductor entry
Technical specifications
| Connection | push-in | |
| Number of rows | 1 | |
| Version | socket header | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 16 A | |
| Pin number | 9 pole | |
| Grid | 7.62 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
