231-106/026-000 | WAGO
Socket header, 6 pole, pitch 5 mm, angled, gray, 231-106/026-000
Unit Price (€ / pc.)
3.6533 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Multipole connectors, 5.0 mm grid, type Wago 231-../026-000.

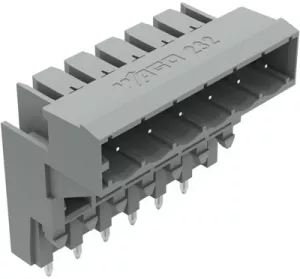

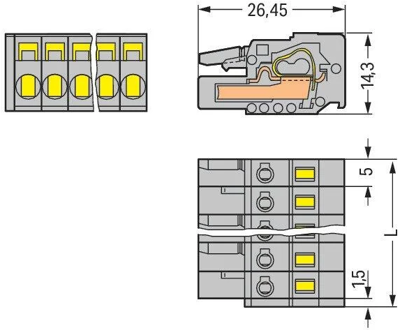

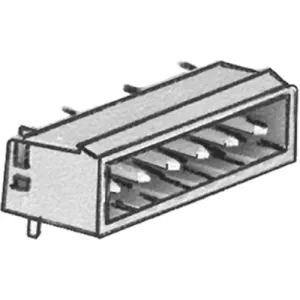

Mating with Wago 231-... pin headers; Color: gray, codable, with two catches. Operating current: 16 A. Operating voltage to UL/CSA: 300/300 V. Operating current to UL/CSA: 15/15A, Connections: cage clamp springs 0.08 to 2.5 mm² (AWG 28 to 12). Stripping length: 8.0 to 9.0 mm. Dimensions: length = (number of poles x grid) + 1.5 mm. Other electrical and mechanical values same as Wago 231 pin headers.
Type: 106, 6 - pole
Technical specifications
| Anschluss | Federzuganschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Bestückung | bestückt | |
| Farbe | grau | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 320 V | |
| Nennstrom | 16 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 6-polig | |
| Rastermaß | 5 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
