231-110/026-000 | WAGO

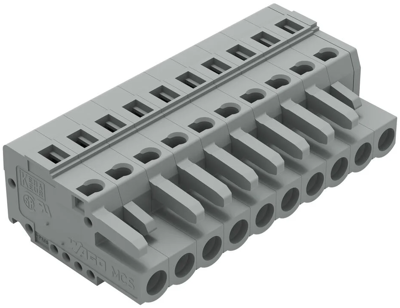

Socket header, 10 pole, pitch 5 mm, angled, gray, 231-110/026-000
Unit Price (€ / pc.)
7.8421 € *
Available: 21 pcs.
Leadtime: 3 Weeks **
Total Price:
7.84 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8421 €
10 pcs.
7.2114 €
50 pcs.
6.5569 €
100 pcs.
5.9024 €
*incl. VAT plus shipping costs
**Subject to prior sale
Multipole connectors, 5.0 mm grid, type Wago 231-../026-000.

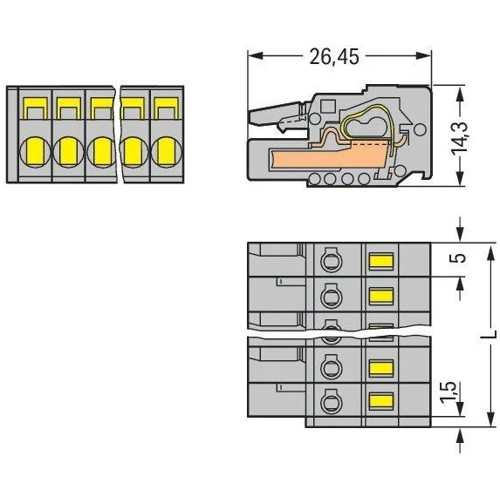

Mating with Wago 231-... pin headers; Color: gray, codable, with two catches. Operating current: 16 A. Operating voltage to UL/CSA: 300/300 V. Operating current to UL/CSA: 15/15A, Connections: cage clamp springs 0.08 to 2.5 mm² (AWG 28 to 12). Stripping length: 8.0 to 9.0 mm. Dimensions: length = (number of poles x grid) + 1.5 mm. Other electrical and mechanical values same as Wago 231 pin headers.
Type: 110, 10 - pole
Technical specifications
| Connection | Federzuganschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | grau | |
| Contact type | Buchse | |
| contact surface | verzinnt | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Orientation | abgewinkelt | |
| Pin number | 10-polig | |
| Grid | 5 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
