231-636/017-000 | WAGO

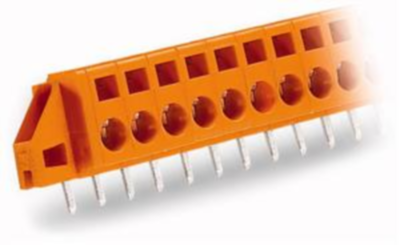

Connector, 6 pole, pitch 5.08 mm, straight, orange, 231-636/017-000
Unit Price (€ / pc.)
3.9270 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.93 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9270 €
10 pcs.
3.6176 €
50 pcs.
3.2844 €
100 pcs.
2.9631 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB terminal block, 231-636/017-000, Wago
Feed-through terminal strip with mounting flanges with solder pins 1x1.2 mm 6-pole Spacing 5.08 mm / 0.2 in orange
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Grid | 5.08 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
