232-837/031-000 | WAGO

Socket header, 7 pole, pitch 7.5 mm, angled, gray, 232-837/031-000

Order No.: 43P7323
EAN: 4044918626453
MPN:
232-837/031-000
Series: 232

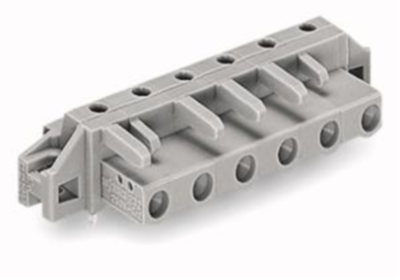

232-837/031-000 WAGO PCB Connection Systems Image 1
232-837/031-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
5.5573 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.5573 €

Female header, 232-837/031-000, Wago

Female connector with angled solder pins and feed through flanges 7 poles Spacing 7.5 mm / 0.295 in Solder pin 0.6x1 mm codable Mating direction parallel to PCB with 2 detents for feed through assembly grey

Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsenleiste
Bestückung bestückt
Farbe grau
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 630 V
Nennstrom 12 A
Orientierung abgewinkelt
Polzahl 7-polig
Rastermaß 7.5 mm
Verriegelung Nein
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
