2721-107/031-000 | WAGO

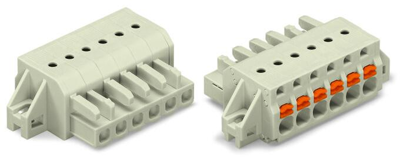

Female connector, 7 pole, pitch 5 mm, light gray, 2721-107/031-000
Unit Price (€ / pc.)
7.735 € *
Available: 0 pcs.
Leadtime: On Request **
Female connector, 2721-107/031-000, WAGO
1-conductor female connector, push-button, Push-in CAGE CLAMP, 2.5 mm², Pin spacing 5 mm, 7-pole, 100% protected against mismating, clamping collar, 2,50 mm², light gray.
Features
- Universal connection for all conductor types
- Easy-to-use design does not require specialty tools
- Ability to wire while mated
- Simple, push-in termination of solid and ferruled conductors
- Integrated test ports for testing parallel to the conductor entry
Technical specifications
| Connection | push-in | |
| Number of rows | 1 | |
| Version | socket header | |
| Colour | light gray | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 16 A | |
| Pin number | 7 pole | |
| Grid | 5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
