2734-1105/327-000 | WAGO

1-wire female connector, 5 pole, pitch 3.5 mm, straight, light gray, 2734-1105/327-000

Order No.: 44P6258
EAN: 4066966219906
MPN:
2734-1105/327-000
Series: 2734
WAGO

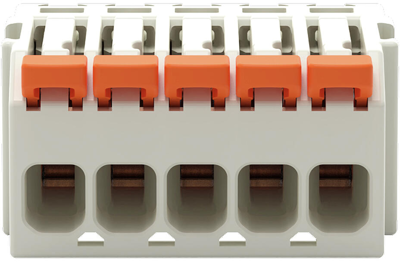

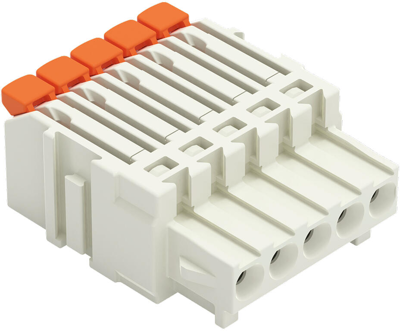

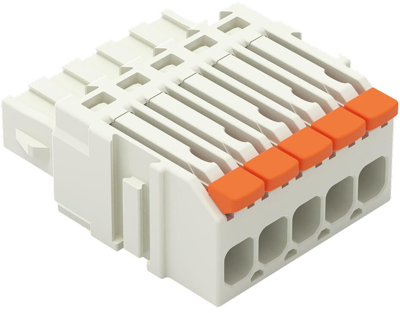

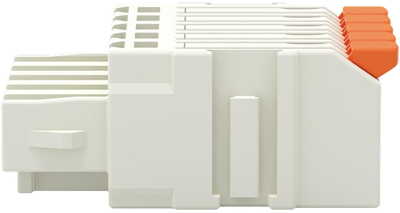

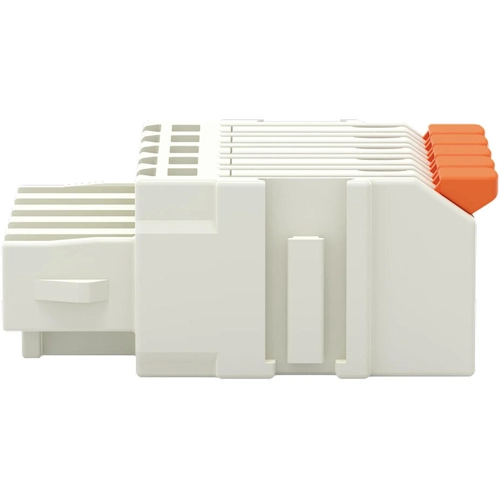

2734-1105/327-000 WAGO PCB Connection Systems Image 1
2734-1105/327-000 WAGO PCB Connection Systems Image 2
2734-1105/327-000 WAGO PCB Connection Systems Image 3
2734-1105/327-000 WAGO PCB Connection Systems Image 4
2734-1105/327-000 WAGO PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.9504 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.95 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9504 €

Female connector, 2734-1105/327-000, WAGO

1-conductor female connector, lever, Push-in cage clamp, 1.5 mm², Pin spacing 3.5 mm, 5-pole, 100% protected against mismating, 1.50 mm², light gray.

Features

  • Intuitive and tool-free lever actuation
  • Universal connection for all conductor types
  • Test slot 90° to conductor entry
Technical specifications
Connection push-in
Number of rows 1
Version socket header
Colour light gray
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation straight
Pin number 5 pole
Grid 3.5 mm
Type of locking No
Logistics
Country of origin PT
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
