713-1107 | WAGO

Socket header, 14 pole, pitch 3.5 mm, straight, black, 713-1107

Order No.: 46F9108
EAN: 4045454664824
MPN:
713-1107
Series: 713
WAGO

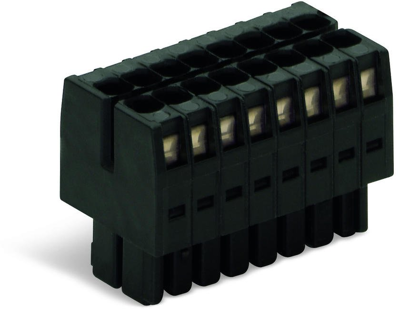

713-1107 WAGO PCB Connection Systems Image 1

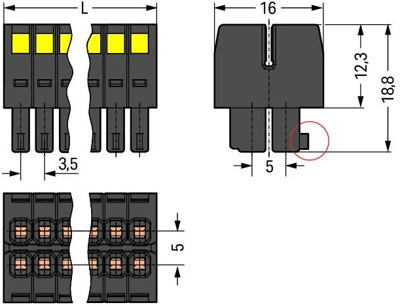

713-1107 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
10.7338 € *
Available: 46 pcs.
Leadtime: 3 Weeks **
Total Price:
10.73 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7338 €
10 pcs.
9.6628 €
50 pcs.
8.6870 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pin headers and multipole connectors MINI HD, type Wago 713.

3.5 mm grid, dual-row, 100 % protected against incorrect insertion; Rated voltage: 80 V. Rated surge voltage: 2.5 kV. Rated current: 6.0 A.

Multipole connectors with cage clamp terminals.

Codable, conductor cross-sections from 0.08 to 1.5 mm².

Type: 713–1107, 14–pole

Technical specifications
Connection spring balancer connection
Number of rows 2
Version socket header
Additional parts equipped
Colour black
Contact type socket
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation straight
Pin number 14 pole
Grid 3.5 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
