713-1406 | WAGO

Pin header, 12 pole, pitch 3.5 mm, straight, black, 713-1406

Order No.: 46F9056
EAN: 4045454700010
MPN:
713-1406
Series: 713
WAGO
713-1406 WAGO PCB Connection Systems Image 1
713-1406 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.7366 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7366 €
10 pcs.
3.4272 €
50 pcs.
3.1178 €
100 pcs.
2.8084 €
*incl. VAT plus shipping costs
**Subject to prior sale

Pin headers and multipole connectors MINI HD, type Wago 713.

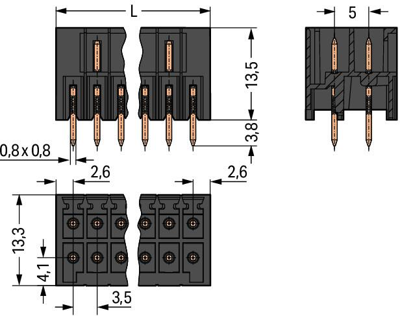

3.5 mm grid, dual-row, 100 % protected against incorrect insertion; Rated voltage: 80 V. Rated surge voltage: 2.5 kV. Rated current: 6.0 A.

Pin headers with straight solder pins.

Solder pins: 0.8 x 0.8 mm.

Type: 713–1406, 12–pole

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 2
Version pin header
Additional parts equipped
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation straight
Pin number 12 pole
Grid 3.5 mm
Type of locking No
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
