713-1422/117-000 | WAGO

Pin header, 4 pole, pitch 3.5 mm, angled, black, 713-1422/117-000

Order No.: 44P9127
EAN: 4066966230192
MPN:
713-1422/117-000
Series: 713
WAGO

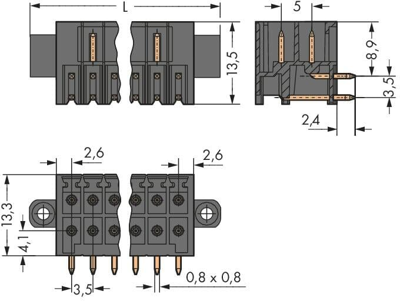

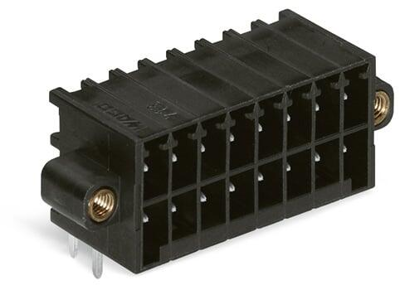

713-1422/117-000 WAGO PCB Connection Systems Image 1
713-1422/117-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.19 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
1.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.19 €

THR male header, 713-1422/117-000, WAGO

THR male header, 2-row, 0.8 x 0.8 mm solder pin, angled, Threaded flange, Pin spacing 3.5 mm, 4-pole, black.

Features

  • THR male headers for reflow soldering in SMT applications
  • Separated pin slots prevent damage and make the headers touch-proof when unplugged
  • 100% protected against mismating
Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 2
Version pin header
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation angled
Pin number 4 pole
Grid 3.5 mm
Type of locking Yes
Logistics
Country of origin PL
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
