713-1424/105-000/997-405 | WAGO

Pin header, 8 pole, pitch 3.5 mm, angled, black, 713-1424/105-000/997-405

Order No.: 44P9137
EAN: 4055143720366
MPN:
713-1424/105-000/997-405
Series: 713
WAGO

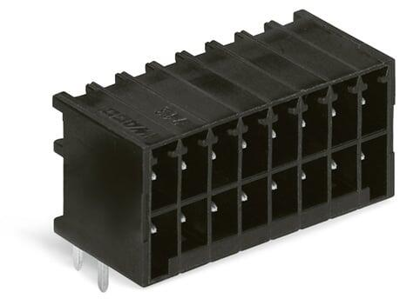

713-1424/105-000/997-405 WAGO PCB Connection Systems Image 1

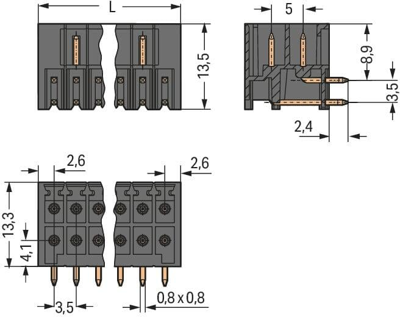

713-1424/105-000/997-405 WAGO PCB Connection Systems Image 2
713-1424/105-000/997-405 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
2.8798 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.8798 €

THR male header, 713-1424/105-000/997-405, WAGO

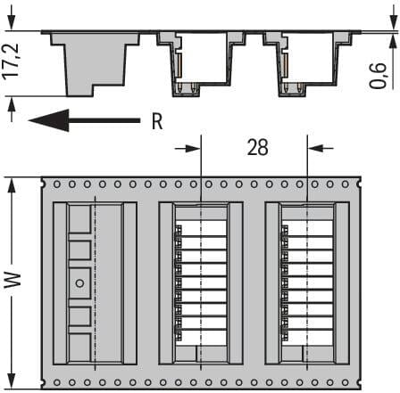

THR male header, 2-row, 0.8 x 0.8 mm solder pin, angled, in tape-and-reel packaging, Pin spacing 3.5 mm, 8-pole, black.

Features

  • THR male headers for reflow soldering in SMT applications
  • Separated pin slots prevent damage and make the headers touch-proof when unplugged
  • 100% protected against mismating
Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 2
Version pin header
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation angled
Pin number 8 pole
Grid 3.5 mm
Type of locking No
Logistics
Country of origin DE
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
