713-1467/107-000 | WAGO

Pin header, 14 pole, pitch 3.5 mm, straight, black, 713-1467/107-000

Order No.: 44P9146
EAN: 4045454809447
MPN:
713-1467/107-000
Series: 713
WAGO
713-1467/107-000 WAGO PCB Connection Systems Image 1
713-1467/107-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
5.7001 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.70 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.7001 €

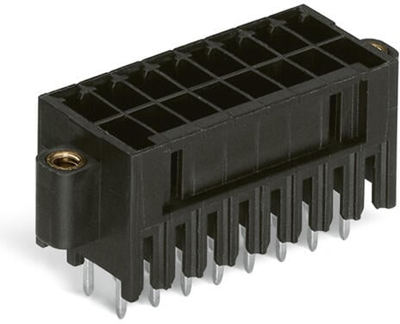

THT male header, 713-1467/107-000, WAGO

THT male header, 2-row, 0.8 x 0.8 mm solder pin, straight, with orientation nose, Threaded flange, Pin spacing 3.5 mm, 14-pole, black.

Features

  • Header housing is molded of THT-compatible insulation material for lead-free reflow soldering
  • Separated pin slots prevent damage and make the headers touch-proof when unplugged
  • 100% protected against mismating
Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 2
Version pin header
Colour black
Contact type pin
contact surface tin-plated
Rated voltage 160 V
Rated current 10 A
Orientation straight
Pin number 14 pole
Grid 3.5 mm
Type of locking Yes
Logistics
Country of origin PL
Customs tariff number 85366930
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
