714-112/000-047 | WAGO
1-wire female connector, 12 pole, pitch 3.5 mm, straight, black, 714-112/000-047
Unit Price (€ / pc.)
6.6283 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Female connector, 714-112/000-047, WAGO

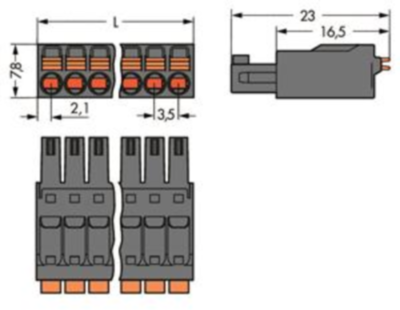

1-conductor female connector, push-button, 1.5 mm², pin spacing 3.5 mm, 12-pole, direct marking, 1,50 mm², black.
Features
- Female connector terminates both solid and ferruled conductors via push-in termination
- Ultra-low profile of just 7.8 mm for conductor cross-section up to 1.5 mm²
- With coding fingers and test points
Technical specifications
| Connection | Push-in | |
| Number of rows | 1 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Breakable | No | |
| Colour | schwarz | |
| Contact type | Buchse | |
| Rated current | 8 A | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Grid | 3.5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
