721-135/001-040 | WAGO

Pin header, 5 pole, pitch 5 mm, straight, light gray, 721-135/001-040

Order No.: 09P0204
EAN: 4044918868921
MPN:
721-135/001-040
Series: 721
WAGO
721-135/001-040 WAGO PCB Connection Systems Image 1
721-135/001-040 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.23 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.2257 €

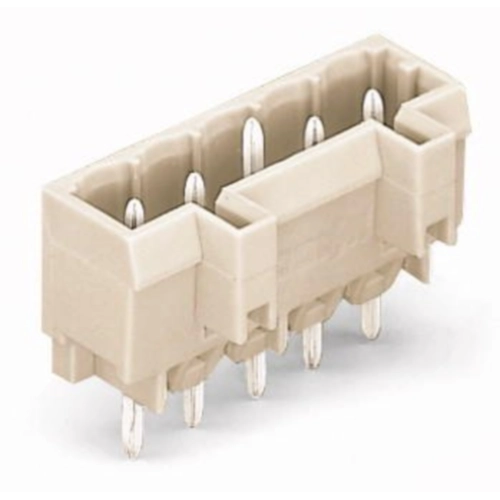

Male header, 721-135/001-040, Wago

Male connector with straight solder pins 1 x 1 mm 5 poles grid spacing 5 mm / 0.197 in 100 % mismating protected with leading PE-contact with side panels mating direction perpendicular to PCB light grey

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version pin header
Additional parts equipped
Colour light gray
Contact type pin
contact surface tin-plated
Rated voltage 320 V
Rated current 12 A
Orientation straight
Pin number 5 pole
Grid 5 mm
Type of locking No
Logistics
Country of origin DE
Customs tariff number 85366990
MSL MSL 1
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
