721-339/031-000 | WAGO

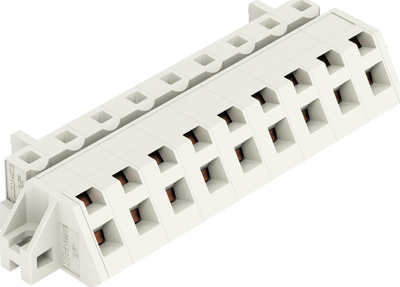

Socket header, 9 pole, pitch 7.5 mm, angled, light gray, 721-339/031-000
Unit Price (€ / pc.)
8.0087 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Female connector, 721-339/031-000, WAGO
1-conductor female connector, angled; Cage clamp; 2.5 mm²; Pin spacing 7.5 mm; 9-pole; 100% protected against mismating; clamping collar; 2,50 mm²; light gray.
Features
- Universal connection for all conductor types
- Easy conductor termination, even when halves are mated
Technical specifications
| Anschluss | Federzuganschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsenleiste | |
| Farbe | lichtgrau | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 630 V | |
| Nennstrom | 12 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 9-polig | |
| Rastermaß | 7.5 mm | |
| Verriegelung | Nein |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
