722-235/039-000 | WAGO
Socket header, 5 pole, pitch 5 mm, angled, light gray, 722-235/039-000
Unit Price (€ / pc.)
3.6414 € *
Available: 0 pcs.
Leadtime: On Request **

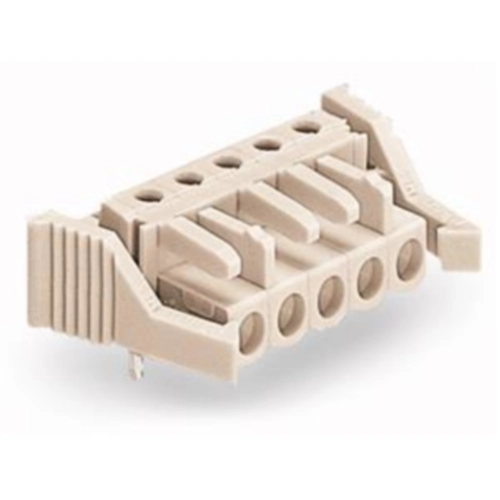

Female header, 722-235/039-000, Wago
Female connector with angled solder pins and locking latches 5-pole Grid spacing 5 mm / 0.197 in 100 % mismating protected Single solder pin 0.6x1 mm can be coded Mating direction parallel to PCB with 2 locking lugs with coding lug light gray
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | light gray | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 320 V | |
| Rated current | 12 A | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Grid | 5 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
