722-238/039-000 | WAGO

Socket header, 8 pole, pitch 5 mm, angled, light gray, 722-238/039-000

Order No.: 44P2994
EAN: 4044918580724
MPN:
722-238/039-000
Series: 722
WAGO

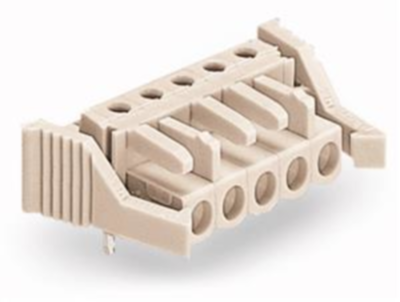

722-238/039-000 WAGO PCB Connection Systems Image 1

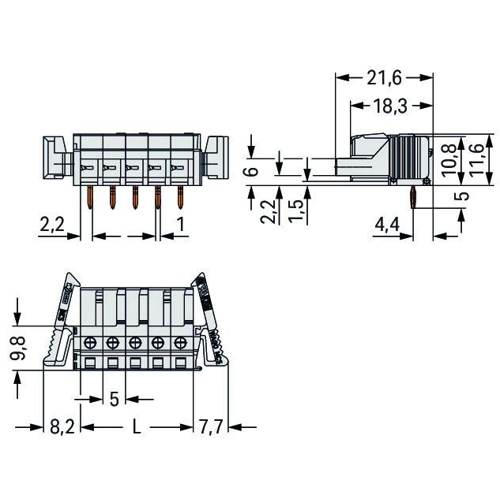

722-238/039-000 WAGO PCB Connection Systems Image 2
722-238/039-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
5.2241 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
5.2241 €

Female header, 722-238/039-000, Wago

Female connector with angled solder pins and locking pawls 8-pin Spacing 5 mm / 0.197 in 100 % mismating protected Solder pin 0.6x1 mm can be coded Mating direction parallel to PCB with 2 locking lugs with coding lug light gray

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour light gray
Contact type socket
contact surface tin-plated
Rated voltage 320 V
Rated current 12 A
Orientation angled
Pin number 8 pole
Grid 5 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
