722-734/039-000 | WAGO

Socket header, 4 pole, pitch 7.5 mm, straight, light gray, 722-734/039-000

Order No.: 44P3056
EAN: 4044918580878
MPN:
722-734/039-000
Series: 722
WAGO

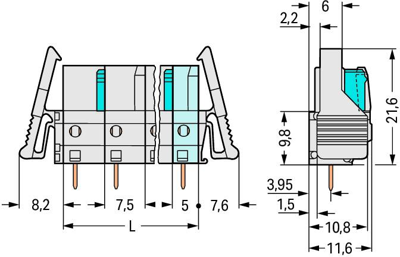

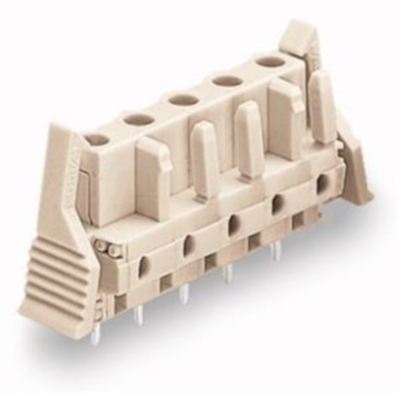

722-734/039-000 WAGO PCB Connection Systems Image 1
722-734/039-000 WAGO PCB Connection Systems Image 2

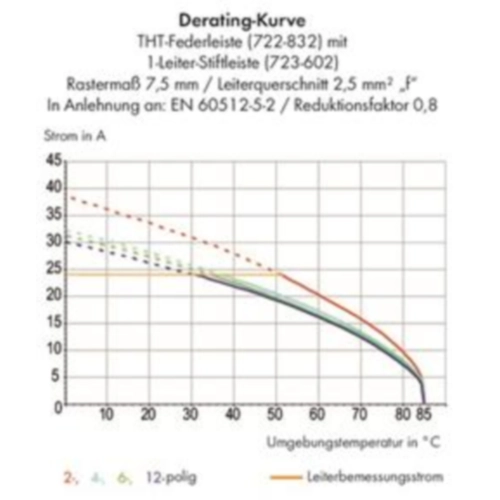

722-734/039-000 WAGO PCB Connection Systems Image 3
Image may differ
Unit Price (€ / pc.)
3.8675 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.87 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.8675 €

Female header, 722-734/039-000, Wago

Female connector with straight solder pins and locking pawls 4-pole Spacing 7.5 mm / 0.295 in 100 % mismate protected Solder pin 0.6x1 mm codable Mating direction perpendicular to PCB with 2 locking tabs with coding lug light grey

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour light gray
Contact type socket
contact surface tin-plated
Rated voltage 630 V
Rated current 12 A
Orientation straight
Pin number 4 pole
Grid 7.5 mm
Type of locking Yes
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
