722-842/031-000 | WAGO

Socket header, 12 pole, pitch 7.5 mm, angled, light gray, 722-842/031-000

Order No.: 44P3138
EAN: 4044918627634
MPN:
722-842/031-000
Series: 722
WAGO

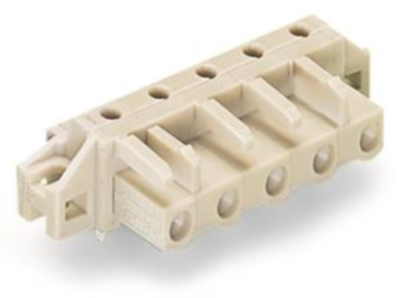

722-842/031-000 WAGO PCB Connection Systems Image 1

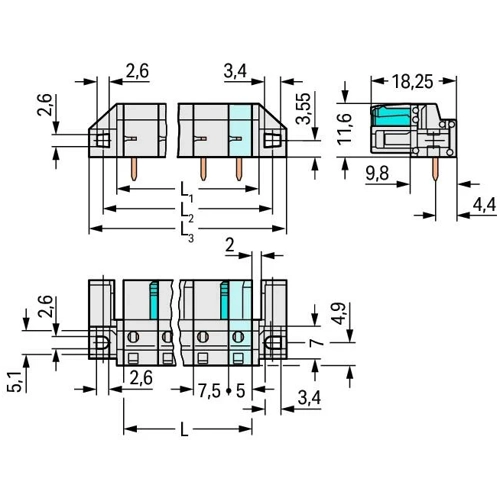

722-842/031-000 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
9.5319 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.5319 €

Female header, 722-842/031-000, Wago

Female connector with angled solder pins and feed-through flanges 12-pole pitch 7.5 mm / 0.295 in 100 % mismating protected solder pin 0.6x1 mm codable mating direction parallel to printed circuit board with 2 locking lugs for completed assembly light grey

Technical specifications
Connection solder pin
Connection plating tin-plated
Number of rows 1
Version socket header
Additional parts equipped
Colour light gray
Contact type socket
contact surface tin-plated
Rated voltage 630 V
Rated current 12 A
Orientation angled
Pin number 12 pole
Grid 7.5 mm
Type of locking No
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
