731-533/031-000 | WAGO

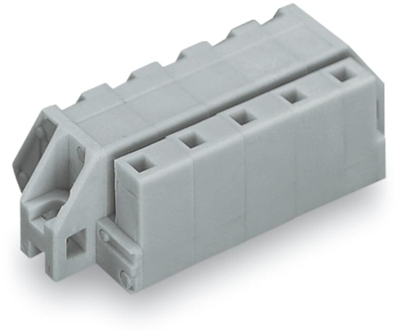

Female connector, 3 pole, pitch 7.5 mm, angled, gray, 731-533/031-000
Unit Price (€ / pc.)
3.0940 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
10 pcs.
2.9036 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-conductor female connector, 731-533/031-000, WAGO
1-conductor female connector, angled, Cage clamp, 2.5 mm², Pin spacing 7.5 mm, 3-pole, clamping collar, DIN-35 rail/panel mounting, 2.50 mm², gray.
Features
- Universal connection for all conductor types
- Easy conductor termination, even when halves are mated
Technical specifications
| Connection | spring balancer connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Colour | gray | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 630 V | |
| Rated current | 12 A | |
| Orientation | angled | |
| Pin number | 3 pole | |
| Grid | 7.5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
