733-342/105-604/997-446 | WAGO
Pin header, 12 pole, pitch 2.5 mm, straight, black, 733-342/105-604/997-446
Unit Price (€ / pc.)
3.2725 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Male header, 733-342/105-604/997-446, Wago

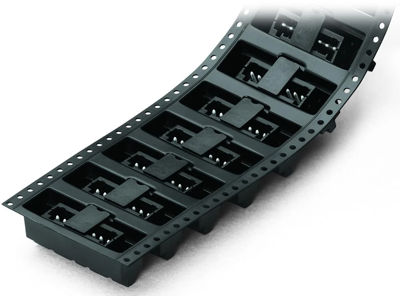

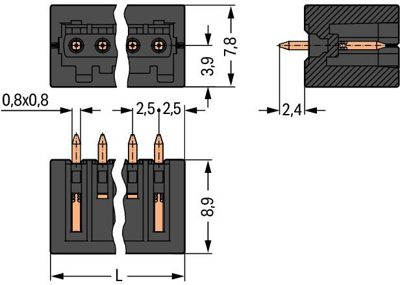

Male connector with straight solder pins in tape according to IEC 60286-3 12 pins grid dimension 2.5 mm / 0.098 in 100% mismating protected mating direction perpendicular to PCB with side panels reflow technology solder pin length 2.4 mm black
Technical specifications
| Connection | Lötstift | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 160 V | |
| Rated current | 6 A | |
| Orientation | gerade | |
| Pin number | 12-polig | |
| Grid | 2.5 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
