734-205/037-000 | WAGO
Socket header, 5 pole, pitch 3.81 mm, angled, orange, 734-205/037-000
Unit Price (€ / pc.)
4.8314 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.83 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8314 €
10 pcs.
4.4506 €
50 pcs.
4.0460 €
100 pcs.
3.6414 €
*incl. VAT plus shipping costs
**Subject to prior sale

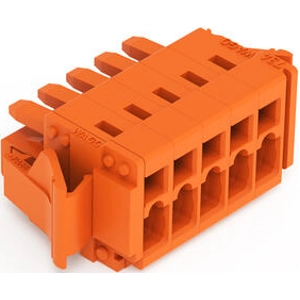

Female header, 734-205/037-000, Wago
Female connector with locking pawls 5-pole Spacing 3.81 mm / 0.15 in 100 % mismating protected codable orange
Technical specifications
| Connection | spring balancer connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | orange | |
| Contact type | socket | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Orientation | angled | |
| Pin number | 5 pole | |
| Grid | 3.81 mm | |
| Type of locking | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
