734-264/105-604/997-405 | WAGO
Pin header, 4 pole, pitch 3.81 mm, angled, black, 734-264/105-604/997-405
Unit Price (€ / pc.)
1.3566 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Male header, 734-264/105-604/997-405, Wago

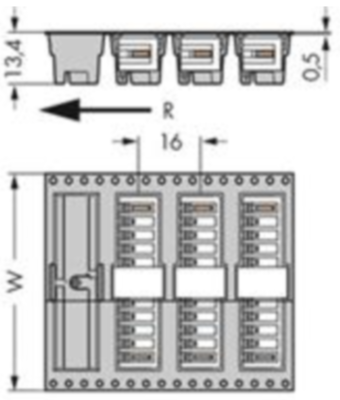

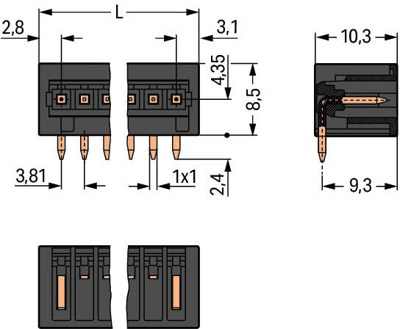

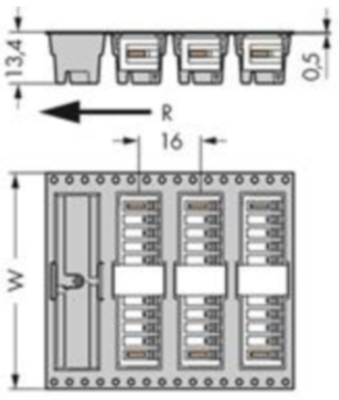

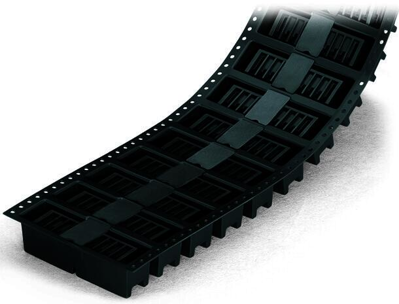

Male headers with angled solder pins in tape acc. to IEC 60286-3 4 poles Spacing 3,81 mm / 0.15 in 100 % mismating protected with side walls Mating direction parallel to PCB Reflow technique Solder pin length 2,4 mm Reel diameter 330 mm black
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Orientation | angled | |
| Pin number | 4 pole | |
| Grid | 3.81 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
