734-270/105-604/997-407 | WAGO

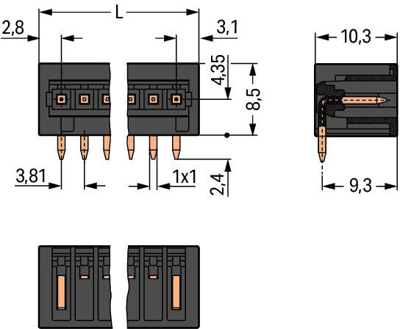

Pin header, 10 pole, pitch 3.81 mm, angled, black, 734-270/105-604/997-407
Unit Price (€ / pc.)
2.9274 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Male connector, 734-270/105-604/997-407, Wago

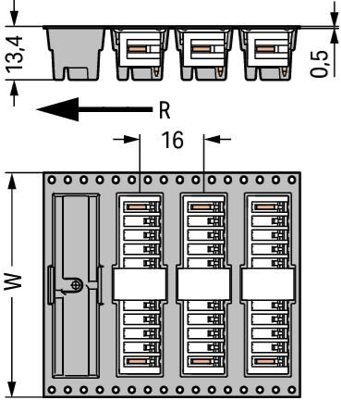

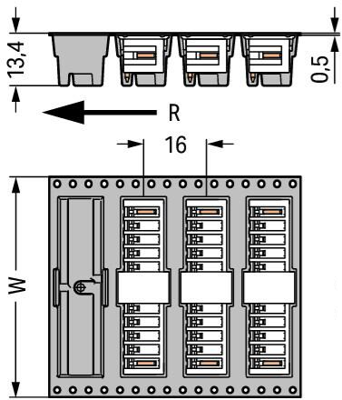

Male header with angled solder pins in tape according to IEC 60286-3 10-pin Spacing 3,81 mm / 0.15 in 100 % mismate protected with side walls mating direction parallel to PCB reflow technique solder pin length 2,4 mm reel diameter 330 mm black
Technical specifications
| Connection | Lötstift | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Orientation | abgewinkelt | |
| Pin number | 10-polig | |
| Grid | 3.81 mm | |
| Type of locking | Nein |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
