734-340/034-000 | WAGO
Pin header, 10 pole, pitch 3.81 mm, angled, orange, 734-340/034-000
Unit Price (€ / pc.)
8.3895 € *
Available: 0 pcs.
Leadtime: On Request **

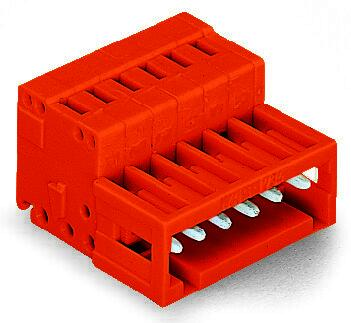

Male connector, 734-340/034-000, WAGO
1-conductor male connector, CAGE CLAMP®, 1.5 mm², Pin spacing 3.81 mm, 10-pole, 100% protected against mismating, Strain relief plate, 1,50 mm², orange.
Features
- Universal connection for all conductor types
- For wire-to-wire and board-to-wire connections
- Strain relief plates and housings for factory and field assembly
- 100% protected against mismating
Technical specifications
| Connection | spring balancer connection | |
| Number of rows | 1 | |
| Version | pin header | |
| Colour | orange | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Orientation | angled | |
| Pin number | 10 pole | |
| Grid | 3.81 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
