734-344/019-000 | WAGO
Pin header, 14 pole, pitch 3.81 mm, angled, gray, 734-344/019-000
Unit Price (€ / pc.)
7.8302 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

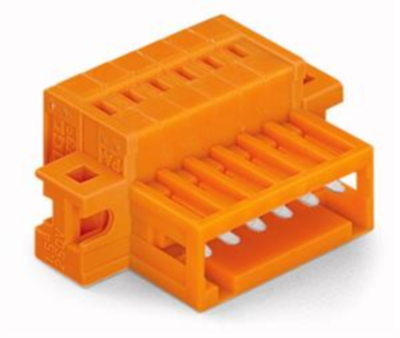

Male connector, 734-344/019-000, Wago
Male connector with mounting flanges 14-pin Spacing 3.81 mm / 0.15 in 100 % mismate-protected for screw or similar mounting types for vertical or horizontal mounting mounting types for vertical or horizontal mounting orange
Technical specifications
| Connection | spring balancer connection | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | gray | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 160 V | |
| Rated current | 10 A | |
| Orientation | angled | |
| Pin number | 14 pole | |
| Grid | 3.81 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
