734-503 | WAGO

Socket header, 3 pole, pitch 3.81 mm, straight, orange, 734-503

Order No.: 44P4300
EAN: 4045454029401
MPN:
734-503
Series: MCS MINI

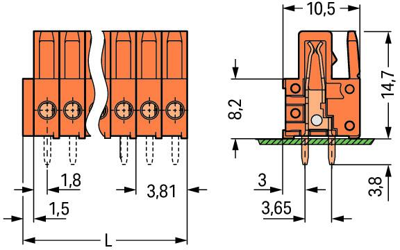

734-503 WAGO PCB Connection Systems Image 1

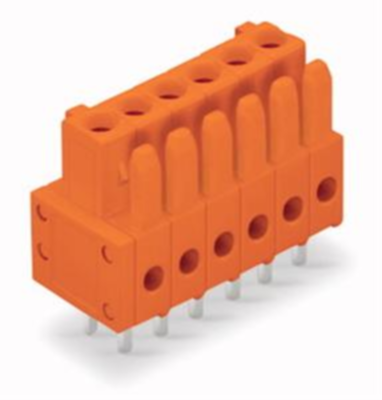

734-503 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
1.6184 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
1.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.6184 €

Female header, 734-503, Wago

Female connector with straight solder pins 3 poles Spacing 3.81 mm / 0.15 in 100 % mismating protected Solder pin 0.9 mm x 0.9 mm codable Mating direction perpendicular to PCB with 2 locking tabs orange

Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsenleiste
Bestückung bestückt
Farbe orange
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 160 V
Nennstrom 10 A
Orientierung gerade
Polzahl 3-polig
Rastermaß 3.81 mm
Verriegelung Nein
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
