734-568 | WAGO

Socket header, 8 pole, pitch 3.81 mm, angled, orange, 734-568

Order No.: 44P4368
EAN: 4045454120948
MPN:
734-568
Series: MCS MINI

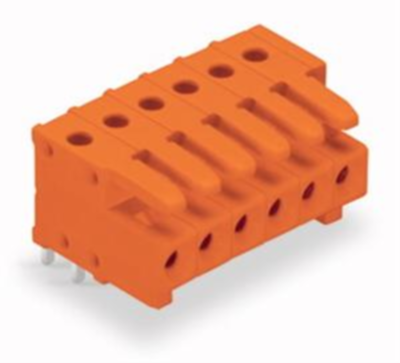

734-568 WAGO PCB Connection Systems Image 1

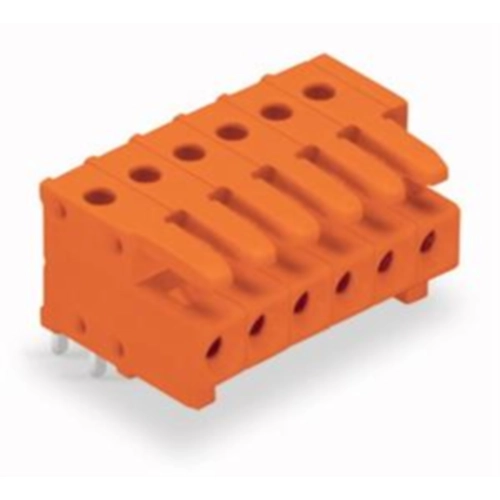

734-568 WAGO PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
3.6771 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.6771 €

Female header, 734-568, Wago

Female terminal strip with angled solder pins 8-pole Spacing 3.81 mm / 0.15 in 100 % mismating protected Single solder pin 0.9 mm x 0.9 mm codable Mating direction parallel to PCB with 2 latches orange

Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Buchsenleiste
Bestückung bestückt
Farbe orange
Kontaktart Buchse
Kontaktoberfläche verzinnt
Nennspannung 160 V
Nennstrom 10 A
Orientierung abgewinkelt
Polzahl 8-polig
Rastermaß 3.81 mm
Verriegelung Nein
Logistics
Ursprungsland DE
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
