769-104/000-048 | WAGO
Socket header, 4 pole, pitch 5 mm, straight, gray/green-yellow/gray, 769-104/000-048
Unit Price (€ / pc.)
4.6648 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.66 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6648 €
10 pcs.
4.2840 €
50 pcs.
3.9032 €
100 pcs.
3.5105 €
*incl. VAT plus shipping costs
**Subject to prior sale

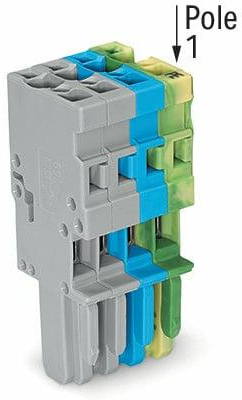

Female connector, 769-104/000-048, WAGO
1-conductor female connector, CAGE CLAMP, 4 mm², pin spacing 5 mm, 4-pole, coding finger, 4,00 mm², gray, green-yellow, gray.
Technical specifications
| Connection | spring-cage connection | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | gray/green-yellow/gray | |
| Contact type | socket | |
| Rated voltage | 500 V | |
| Rated current | 32 A | |
| Orientation | straight | |
| Pin number | 4 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
