769-109/000-039 | WAGO

Socket header, 9 pole, pitch 5 mm, straight, gray/blue/green-yellow, 769-109/000-039

Order No.: 44P6441
EAN: 4050821653493
MPN:
769-109/000-039
Series: 769
WAGO

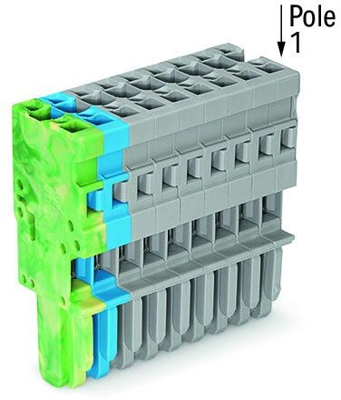

769-109/000-039 WAGO PCB Connection Systems Image 1

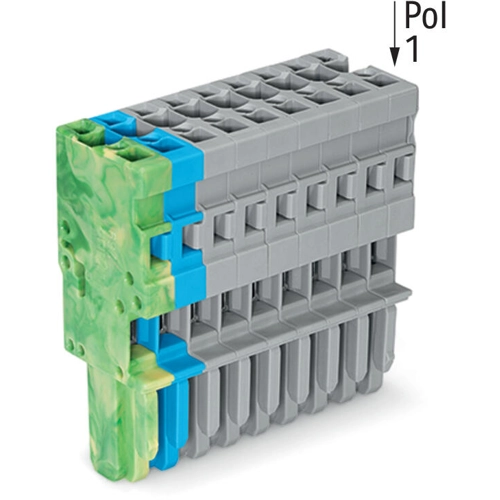

769-109/000-039 WAGO PCB Connection Systems Image 2
Image may differ
Print
Key Specification:
Version socket header
Contact type socket
Pin number 9 pole
Grid 5 mm
Connection spring-cage connection
Show 58 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
9.0916 € *
Available: 23 pcs.
Leadtime: 4 Weeks **
Total Price:
9.09 € *
Price list
Quantity
Price per unit*
1 pcs.
9.0916 €
10 pcs.
8.3657 €
50 pcs.
7.6160 €
100 pcs.
6.8544 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Logistics
Compliance
Variations

1-Conductor female connector, 769-109/000-039, Wago

1-conductor female multipoint connector with PE end module (green-yellow) for insertion into base terminals or pin headers, can be coded, bridgeable with mini cross-bridges 9-pin green-yellow, blue, gray
Technical specifications
Connection spring-cage connection
Version socket header
Additional parts equipped
Colour gray/blue/green-yellow
Contact type socket
Rated voltage 500 V
Rated current 32 A
Orientation straight
Pin number 9 pole
Grid 5 mm
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
