769-112/000-006 | WAGO

Socket header, 12 pole, pitch 5 mm, straight, blue, 769-112/000-006

Order No.: 44P6457
EAN: 4045454579883
MPN:
769-112/000-006
Series: 769
WAGO

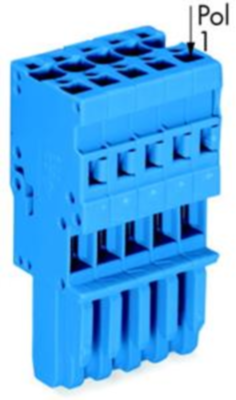

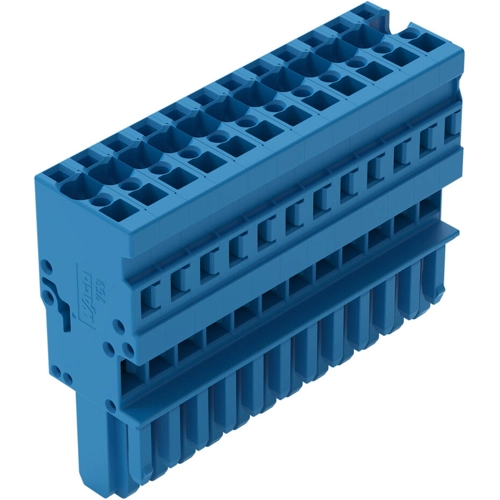

769-112/000-006 WAGO PCB Connection Systems Image 1

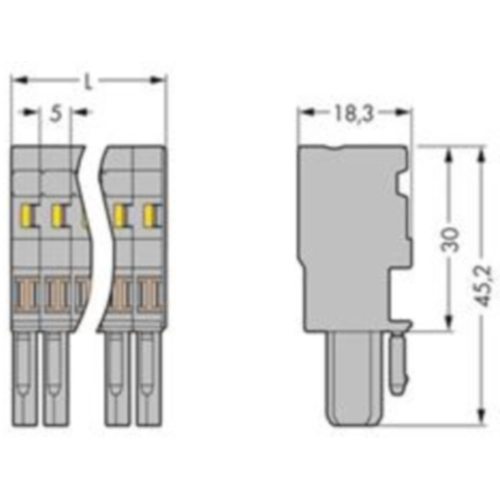

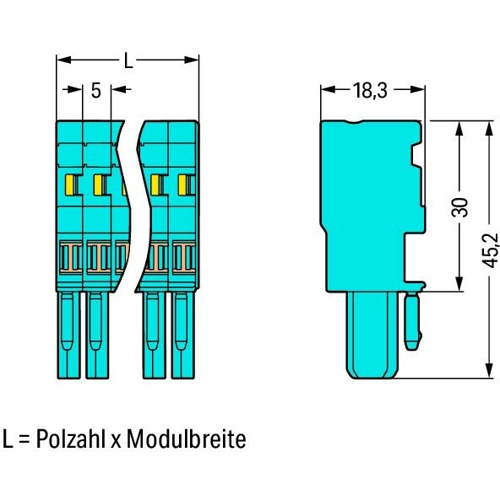

769-112/000-006 WAGO PCB Connection Systems Image 2
Image may differ
Print
Key Specification:
Version socket header
Contact type socket
Pin number 12 pole
Grid 5 mm
Connection spring-cage connection
Show 15 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
9.52 € *
Available: 0 pcs.
Leadtime: On Request **
Add to Cart
Total Price:
9.52 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
9.52 €
Description
Technical specifications
Download
Logistics
Compliance
Variations

1-Conductor female connector, 769-112/000-006, Wago

1-conductor female connector, straight, for insertion into basic terminal blocks or pin headers, can be jumpered with mini jumpers 12-pin blue
Technical specifications
Connection spring-cage connection
Version socket header
Additional parts equipped
Colour blue
Contact type socket
Rated voltage 500 V
Rated current 32 A
Orientation straight
Pin number 12 pole
Grid 5 mm
Show similar products 0
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
