769-115/000-006 | WAGO
Socket header, 15 pole, pitch 5 mm, straight, blue, 769-115/000-006
Unit Price (€ / pc.)
16.6005 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
16.60 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6005 €
10 pcs.
15.2677 €
50 pcs.
13.8992 €
100 pcs.
12.5069 €
*incl. VAT plus shipping costs
**Subject to prior sale

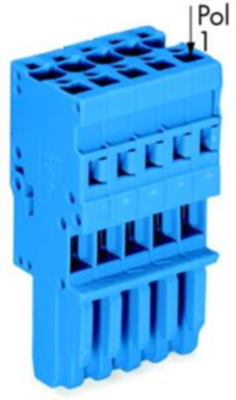

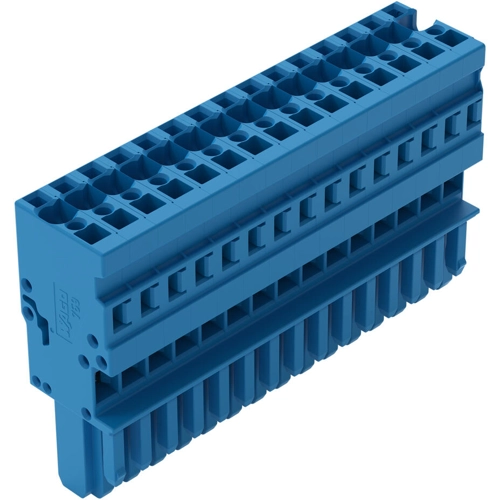

1-Conductor female connector, 769-115/000-006, Wago
1-conductor female connector, straight, for insertion into base terminals or pin headers, can be coded, can be bridged with mini cross-bridges 15-pin blue
Technical specifications
| Connection | spring-cage connection | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | blue | |
| Contact type | socket | |
| Rated voltage | 500 V | |
| Rated current | 32 A | |
| Orientation | straight | |
| Pin number | 15 pole | |

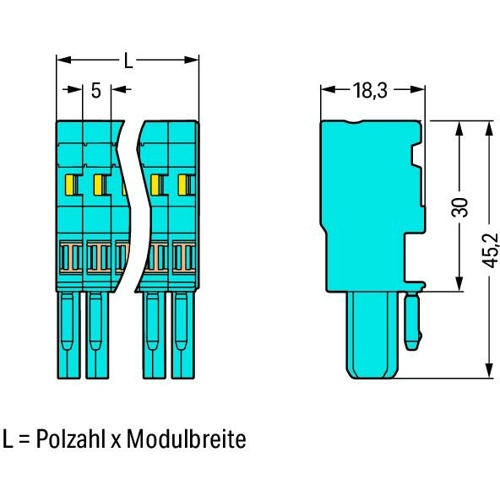

| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
