769-115/000-039 | WAGO

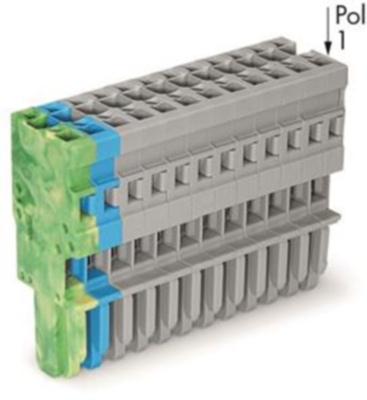

Socket header, 15 pole, pitch 5 mm, straight, gray/blue/green-yellow, 769-115/000-039
Unit Price (€ / pc.)
15.2915 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
15.29 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2915 €
10 pcs.
14.0658 €
50 pcs.
12.8044 €
100 pcs.
11.5192 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Conductor female connector, 769-115/000-039, Wago
1-conductor female multipoint connector with PE end module (green-yellow) for insertion into base terminals or pin headers, can be coded, bridgeable with mini cross-bridges 15-pole green-yellow, blue, gray
Technical specifications
| Connection | spring-cage connection | |
| Version | socket header | |
| Additional parts | equipped | |
| Colour | gray/blue/green-yellow | |
| Contact type | socket | |
| Rated voltage | 500 V | |
| Rated current | 32 A | |
| Orientation | straight | |
| Pin number | 15 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
