769-611/001-000 | WAGO

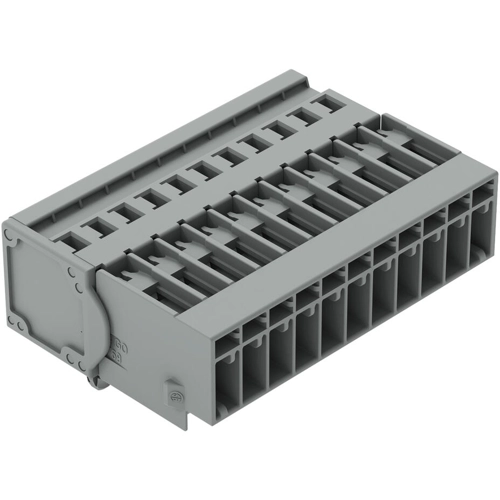

Pin header, 11 pole, pitch 5 mm, straight, gray, 769-611/001-000
Unit Price (€ / pc.)
9.4129 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.41 € *
Price list
Quantity
Price per unit*
1 pcs.
9.4129 €
10 pcs.
8.6632 €
50 pcs.
7.8778 €
100 pcs.
7.0924 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Conductor male connector, 769-611/001-000, Wago
Male connector with CAGE CLAMP connection and snap-in feet for sheet thickness 0.6 - 1.2 mm Mounting holes Ø 3.5 mm with mounting adapter 209-137 also on TS 35 Spacing 5 mm / 0.197 in 11-pin gray
Technical specifications
| Connection | spring-cage connection | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | gray | |
| Contact type | pin | |
| Rated voltage | 500 V | |
| Rated current | 32 A | |
| Orientation | straight | |
| Pin number | 11 pole | |
| Grid | 5 mm |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
