769-645/007-000 | WAGO
Pin header, 15 pole, pitch 5 mm, straight, gray, 769-645/007-000
Unit Price (€ / pc.)
4.5339 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.53 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5339 €
10 pcs.
4.0936 €
*incl. VAT plus shipping costs
**Subject to prior sale

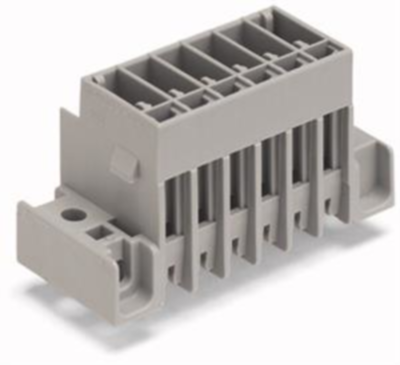

Male connector, 769-645/007-000, Wago
Male header with straight solder pins and rivet mounting flanges mating direction perpendicular to PCB 1 x 1 mm pitch 5 mm / 0.197 in 15-pin gray
Technical specifications
| Connection | solder pin | |
| Connection plating | tin-plated | |
| Number of rows | 1 | |
| Version | pin header | |
| Additional parts | equipped | |
| Colour | gray | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 32 A | |
| Orientation | straight | |
| Pin number | 15 pole | |
| Grid | 5 mm | |
| Type of locking | No |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
