2060-1472/998-404 | WAGO

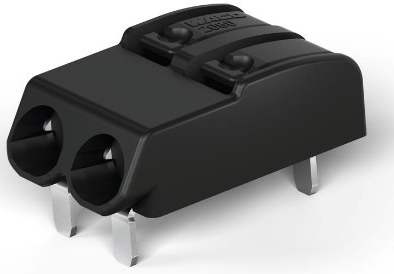

PCB terminal, 2 pole, pitch 4 mm, AWG 24-18, 9 A, push-in cage clamp, black, 2060-1472/998-404

Order No.: 43P3618
EAN: 4055143331210
MPN:
2060-1472/998-404
Series: 2060
2060-1472/998-404 WAGO PCB Terminal Blocks Image 1
2060-1472/998-404 WAGO PCB Terminal Blocks Image 2
Image may differ
Unit Price (€ / pc.)
0.6307 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.63 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
0.6307 €

PCB terminal, 2060-1472/998-404, WAGO

THR PCB terminal block, push-button, 0.75 mm², pin spacing: 4 mm, 2-pole, push-in CAGE CLAMP, 0.75 mm², black.

Features

  • THR PCB terminal blocks with Push-in CAGE CLAMP connection technology and push-buttons
  • Push-in termination of solid and ferruled conductors
  • Convenient termination/removal of fine-stranded conductors via push-buttons
  • Also suitable for wave soldering
Technical specifications
Anschluss Push-in Käfigklemme
AWG-Leiterquerschnitt AWG 24-18
Breite 7.9 mm
Farbe schwarz
Höhe 6.9 mm
Leiterquerschnitt 0,2-0,75 mm²
Nennspannung 160 V
Nennstrom 9 A
Polzahl 2-polig
Rastermaß 4 mm
Tiefe 12.7 mm
Logistics
Ursprungsland CH
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
